Product Features:
CE&RoHS certificated
3-5 years warranty
Rotatable endcaps are available
EVG, KVG, AC input
Flicker free
100-120-140-160-180lm/W
Product Data:

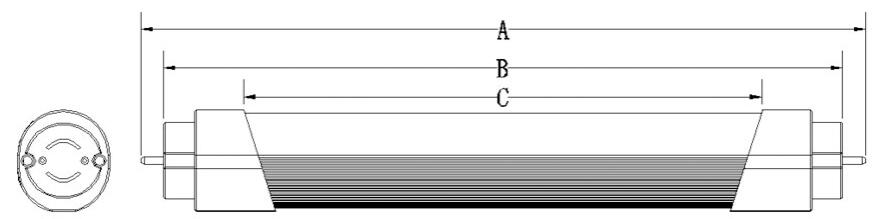

Unite:mm
Length | A | B | C |
0.6m | 602 | 588 | 551 |
0.9m | 912 | 898 | 861 |
1.2m | 1212 | 1198 | 1161 |
1.5m | 1512 | 1498 | 1461 |
1.8m | 1778 | 1764 | 1727 |
2.4m | 2388 | 2374 | 2337 |
Model Number | Size(mm) | Power | Input Voltage | LED Type | CRI | Luminous Efficiency | Beam Angle |
WS-T8A-232B-200 | Φ26X600 | 8W | AC85-265V | 2835 | Ra≥80 | 100-120-140-160-180(LM/W) | 120° |
WS-T8A-233B-300 | Φ26X600 | 14W | AC85-265V | 2835 | Ra≥80 | 100-120-140-160-180(LM/W) | 120° |
WS-T8A-234B-400 | Φ26X1200 | 18W | AC85-265V | 2835 | Ra≥80 | 100-120-140-160-180(LM/W) | 120° |
WS-T8A-234B-500 | Φ26X1200 | 22W | AC85-265V | 2835 | Ra≥80 | 100-120-140-160-180(LM/W) | 120° |
WS-T8A-235B-500 | Φ26X1500 | 25W | AC85-265V | 2835 | Ra≥80 | 100-120-140-160-180(LM/W) | 120° |
WS-T8A-235B-600 | Φ26X1500 | 28W | AC85-265V | 2835 | Ra≥80 | 100-120-140-160-180(LM/W) | 120° |
WS-T8A-236B-600 | Φ26X1800 | 30W | AC85-265V | 2835 | Ra≥80 | 100-120-140-160-180(LM/W) | 120° |
WS-T8A-237B-700 | Φ26X2400 | 35W | AC85-265V | 2835 | Ra≥80 | 100-120-140-160-180(LM/W) | 120° |
CCT | 3000K/4000K/5000K/6000K |
Power Factor | ＞0.9 |
LED Type | Epistar SMD2835 |
Cover | Clear / Frosted |
Lifespan | 50000 hours |
Operating Temperature | -20℃～+45℃ |
Operating Humidity | <80% |
Efficiency | ＞90% |
Warranty | 3-5 years |
