Product Features:
- Aluminum frames. Good heat dissipation and stable. Line pattern is simple but fashion.
- 45 degree cutting and welding. Appearance is stable, compact and good looking.
- The light source adopts 160 degree high reflectivity lens, which is protective to eyes and with good luminance uniformity.
- High thermal conductivity aluminum PCB board. High reflectivity ink. Big brand SMD2835. Higher luminance and better quality.
- The surface is with special material and processing technology. The reflectivity is high to 95%.
- Several installation ways. Suitable for office. supermarket, hotel etc.
- High PF flicker free driver. Brand capacitor. Stable lifespan. 3 year warranty.
Product Data:

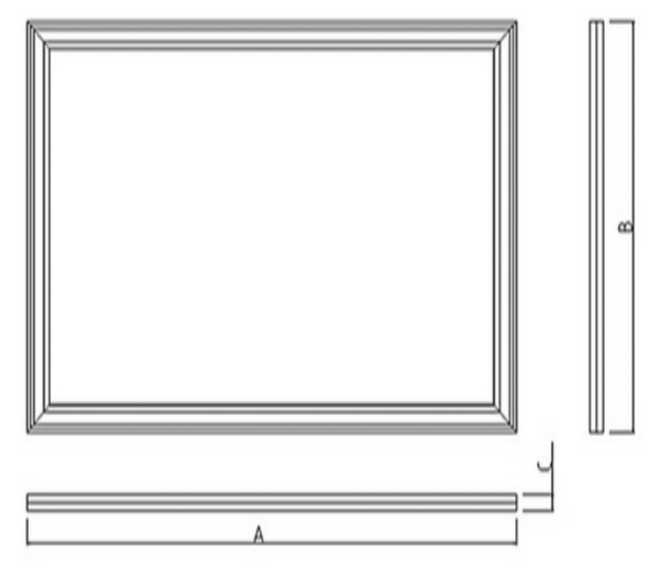

Unite:mm
| Item No. | A(mm) | B(mm) | C(mm) |
| WS-PL-233B-300 | 595 | 595 | 23 |
| WS-PL-234B-300 | 295 | 1195 | 31 |
| WS-PL-235B-300 | 595 | 1195 | 31 |
| Model Number | Size(mm) | Power | Input Voltage | LED Type | CRI | Luminous | Beam Angle |
| WS-PL-234B-300 | 595x595x23 | 36W | 200-240V | 2835 | Ra≥80 | 100lm/W | 120° |
| WS-PL-233B-300 | 295x1195x31 | 36W | 200-240V | 2835 | Ra≥80 | 100lm/W | 120° |
| WS-PL-235B-500 | 595x1195x31 | 44W | 200-240V | 2835 | Ra≥80 | 100lm/W | 120° |
| WS-PL-234B-300 | 595x595x23 | 36W | 200-240V | 2835 | Ra≥80 | 125lm/W | 120° |
| WS-PL-233B-300 | 295x1195x31 | 36W | 200-240V | 2835 | Ra≥80 | 125lm/W | 120° |
| WS-PL-235B-500 | 595x1195x31 | 44W | 200-240V | 2835 | Ra≥80 | 125lm/W | 120° |
Color Temperature | 3000K/4000K/6000K | ||||||
Power Factor | ＞0.95 | ||||||
Life Span | 50000 hours | ||||||
Operating Temperature | -20℃～+45℃ | ||||||
Efficiency | ＞88% | ||||||
Warranty | 3 year | ||||||
