Product Features:
TUV&CE&RoHS certificated
KVG compatible, AC input
5 years warranty

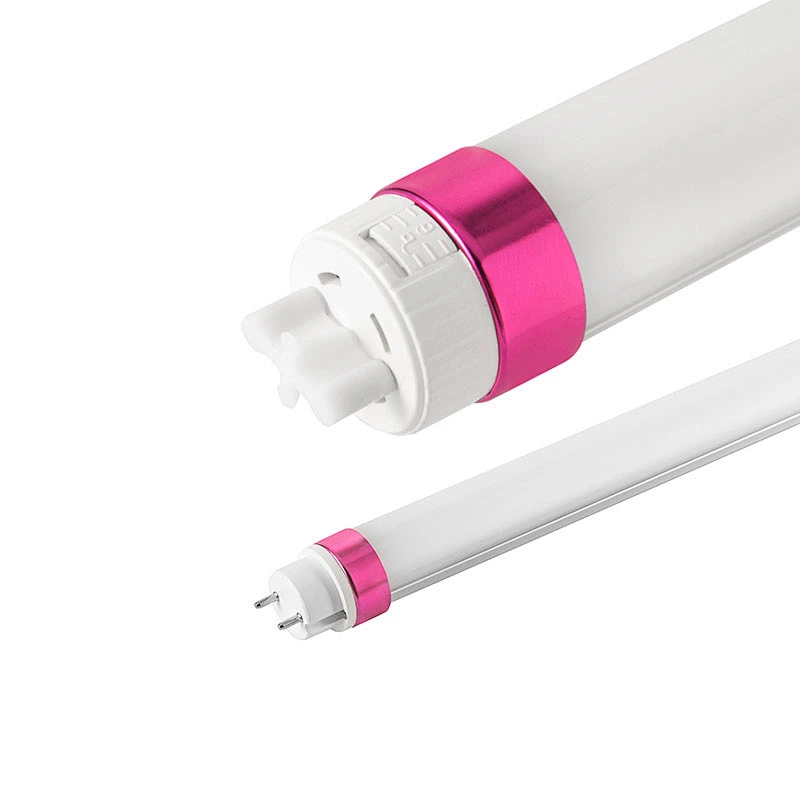

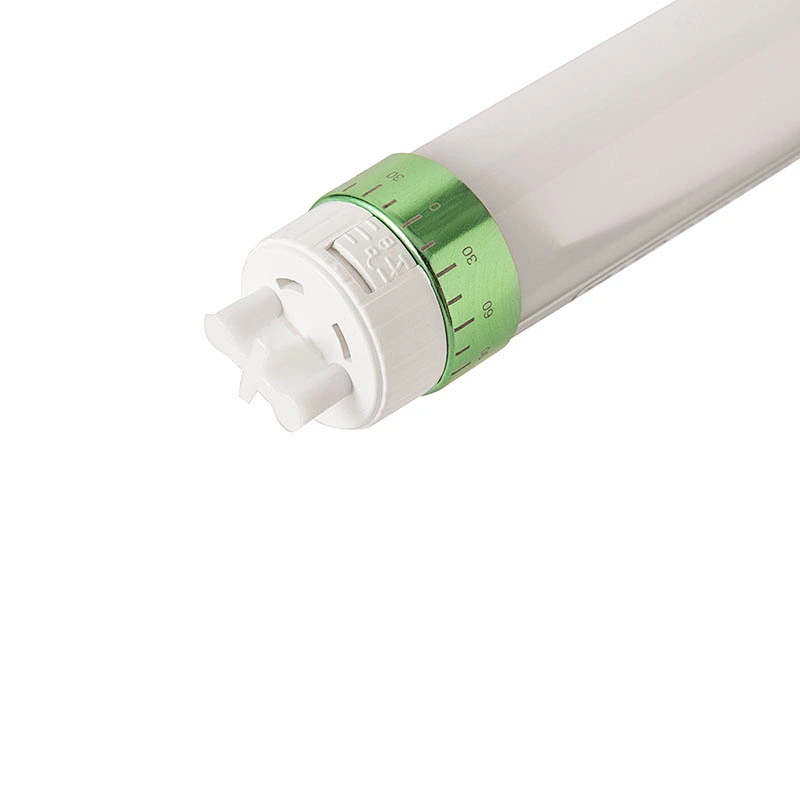

Rotatable endcaps are available
Flicker free is available
Product Data:

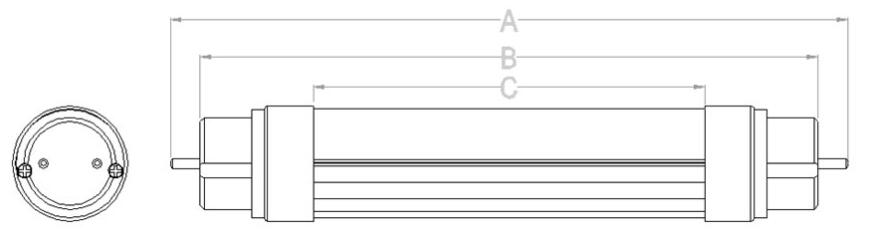

Unite:mm
| Model | A | B | C | Tolerance |
| 0.6m | 602 | 588 | 535 | ±1 |
| 1.2m | 1212 | 1198 | 1145 | |
| 1.5m | 1512 | 1498 | 1445 |
Model Number | Size(mm) | Power | Input Voltage | LED Qty | CRI | Luminous Efficiency | Beam Angle |
| WS-TL-T806B08R-B | Φ26X600 | 8W | AC85-265V | 2835 | Ra≥80 | 120-140-160-180(LM/W) | 160° |
| WS-TL-T812B18R-B | Φ26X1200 | 18W | AC85-265V | 2835 | Ra≥80 | 120-140-160-180(LM/W) | 160° |
| WS-TL-T815B25R-B | Φ26X1500 | 25W | AC85-265V | 2835 | Ra≥80 | 120-140-160-180(LM/W) | 160° |
| CCT | 3000K/4000K/5000K/6000K |
| Power Factor | ＞0.9 |
| LED Type | Epistar SMD2835 |
| Cover | Clear / Frosted |
| Life Span | 50,000 hours |
| Operating Temperature | -20℃～+45℃ |
| Operating Humidity | <80% |
| Efficiency | ＞90% |
| Warranty | 5 years |
