Product Features:
CE&RoHS certificated
IP65
5 years warranty
Low energy. High efficiency. 200lm/W makes it saving energy more than 80%
All tube light can be used as compatible with electronic ballast
Product Data:

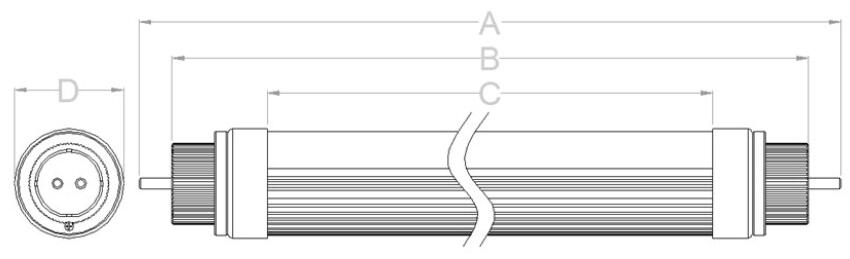

Unite:mm
| Model | A | B | C | D |
| WS-TL-T606B08B | 565 | 548 | 508 | Φ22 |
| WS-TL-T612B18B | 1162 | 1148 | 1108 | Φ22 |
| WS-TL-T615B25B | 1462 | 1448 | 1408 | Φ22 |
Model Number | Size(mm) | Power | Input Voltage | LED Qty | CRI | Luminous Efficiency | Beam Angle |
| WS-TL-T806B08R-B | Φ26X600 | 8W | AC85-265V | 2835 | Ra≥80 | 110-180(LM/W) | 120° |
| WS-TL-T812B18R-B | Φ26X1200 | 18W | AC85-265V | 2835 | Ra≥80 | 110-180(LM/W) | 120° |
| WS-TL-T815B25R-B | Φ26X1500 | 25W | AC85-265V | 2835 | Ra≥80 | 110-180(LM/W) | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| Power Factor | ＞0.9 |
| LED Type | Epistar SMD2835 |
| Cover | Clear / Frosted |
| Life Span | 50,000 hours |
| Operating Temperature | -20℃～+45℃ |
| Operating Humidity | <80% |
| Input Voltage | 100-277V |
| Warranty | 5 years |
