Product Features:
CE&RoHS certificated
5 years warranty
PMMA LGP
THD<10 / UGR<19 is available
Flicker free
Dimmable / emergency for option
Product Data:

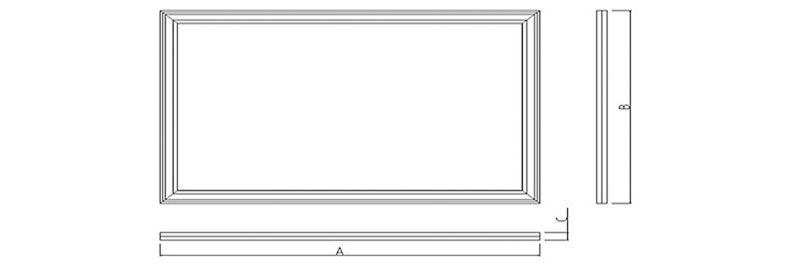

Unite:mm
Model | A | B | C |
WS-PL-231B-100 | 295 | 295 | 11 |
WS-PL-233B-300 | 295 | 1195 | 11 |
WS-PL-234B-300 | 595 | 595 | 11 |
WS-PL-235B-500 | 595 | 1195 | 11 |
Model Number | Size(mm) | Power | Input Voltage | LED Type | CRI | Luminous Efficiency | Beam Angle |
WS-PL-231B-100 | 295x295x11 | 18W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-232B-200 | 295x595x11 | 27W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-233B-300 | 295x1195x11 | 36W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-233B-400 | 295x1195x11 | 48W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-233B-500 | 295x1195x11 | 54W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-234B-300 | 595x595x11 | 28W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-234B-300 | 595x595x11 | 36W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-234B-400 | 595x595x11 | 48W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-234B-500 | 595x595x11 | 54W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-235B-500 | 595x1195x11 | 54W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
WS-PL-235B-600 | 595x1195x11 | 72W | 100-240V | 2835 | Ra≥80 | 100-150(LM/W) | 120° |
CCT | 3000K/4000K/5000K/6000K |
Power Factor | ＞0.95 |
LED Type | Epistar SMD2835 |
Dimmable | Triac/ 0-10V/DALI (Optional) |
Lifespan | 50000 hours |
Operating Temperature | -20℃～+45℃ |
Operating Humidity | <80% |

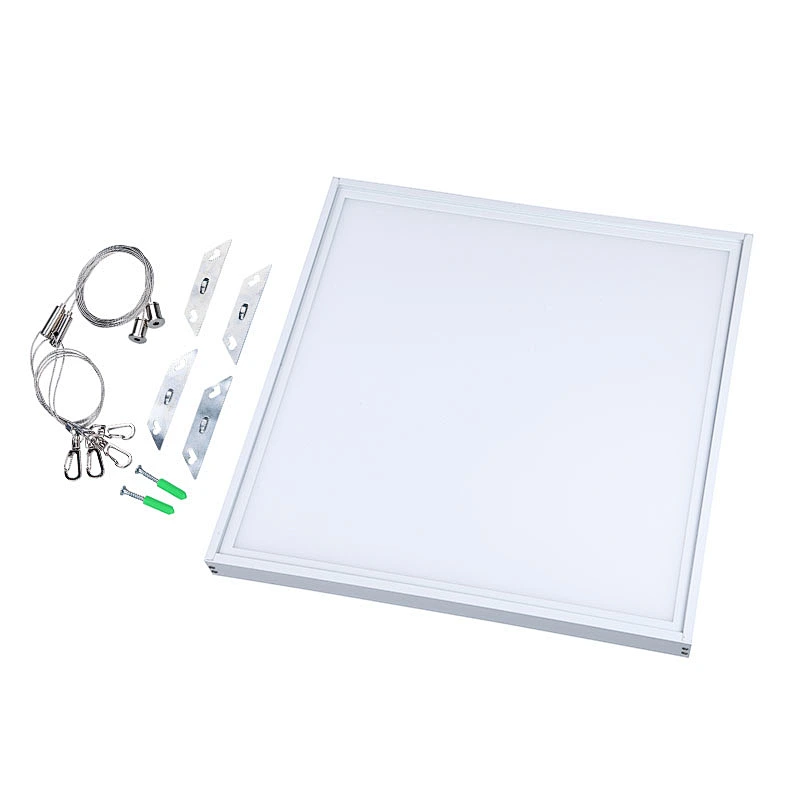

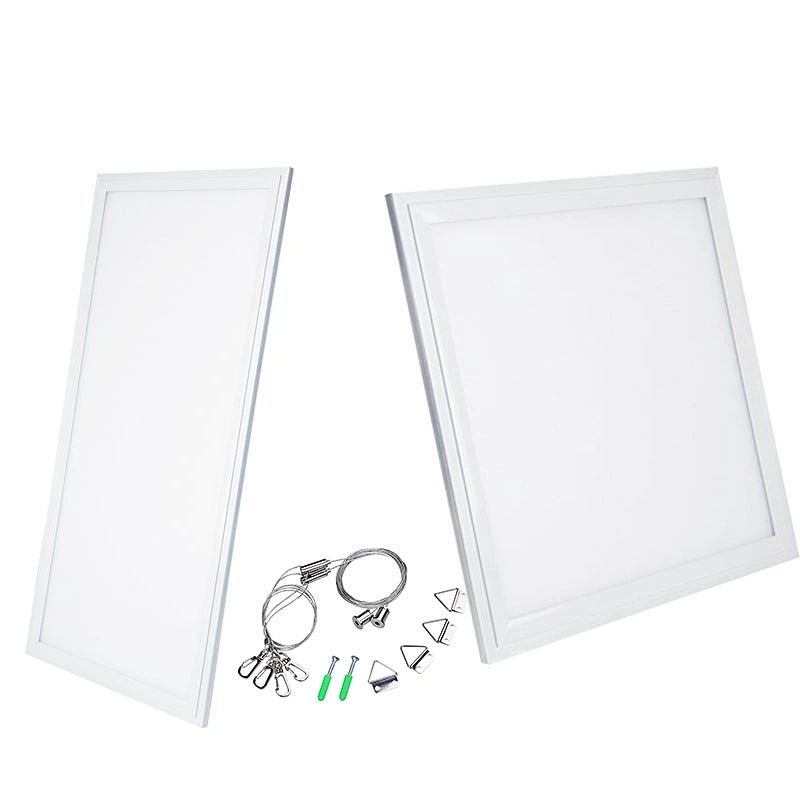

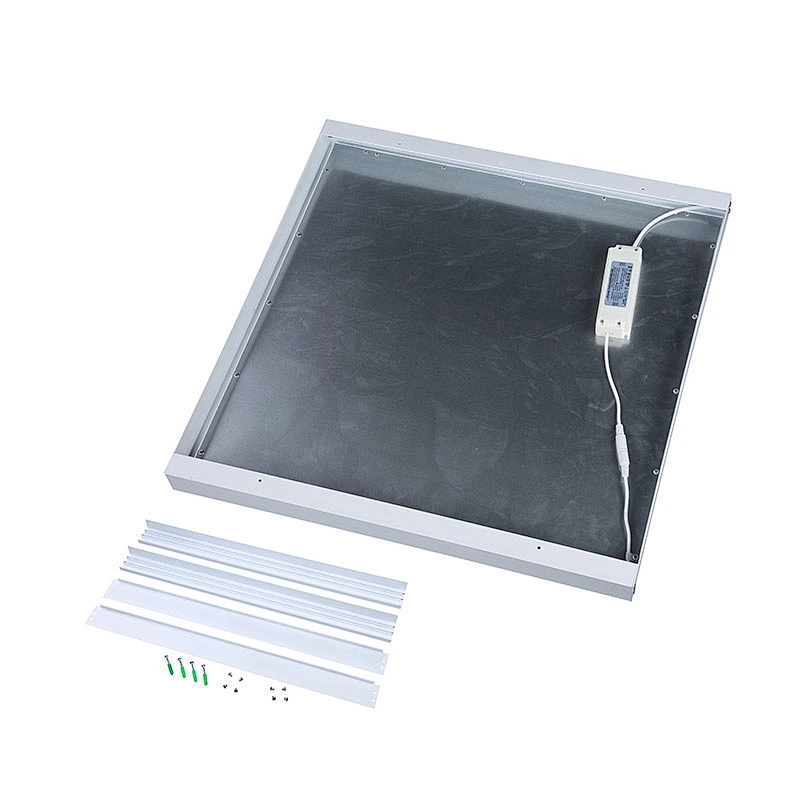

Installation method | Suspended/Ceiling/Recessed |
Warranty | 5 years |
