Feature:
1.Elegant appearance and patent design, obtained pratical patents certificate.
2. Two models for potion: Plastic and PMMA+Aluminum.
3.Using diamond-shaped optical design, so the overall light is uniform and no dark areas.

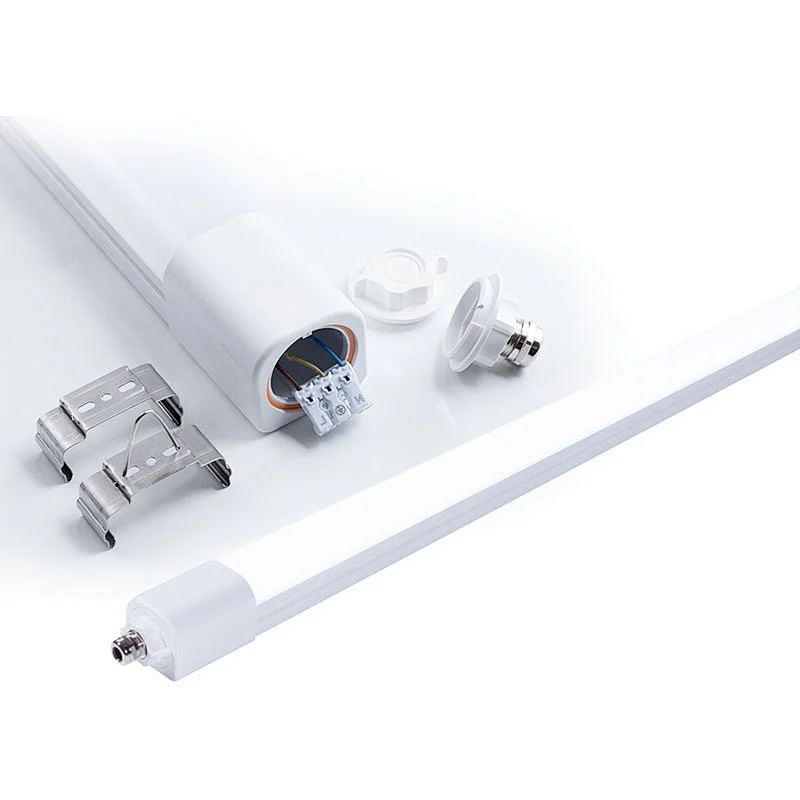

4.Rotating end cover + terminal design, easy to wiring, convenient and time-saving.

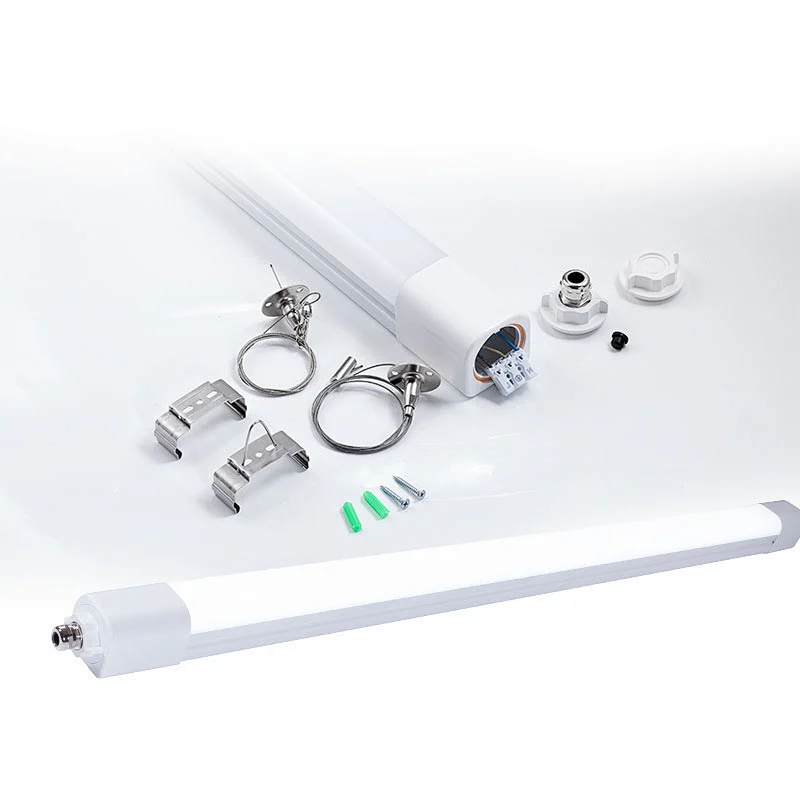

5.The installation clip is reversed hook design. Product can easily directly lock into the clip (without any screws). Fast easy installation to save cost and time.
6.Multi-functions : built-in microwave sensor, 1-10V/DALI dimmable，Emergency battery, CCT adjustbale and other function is available.

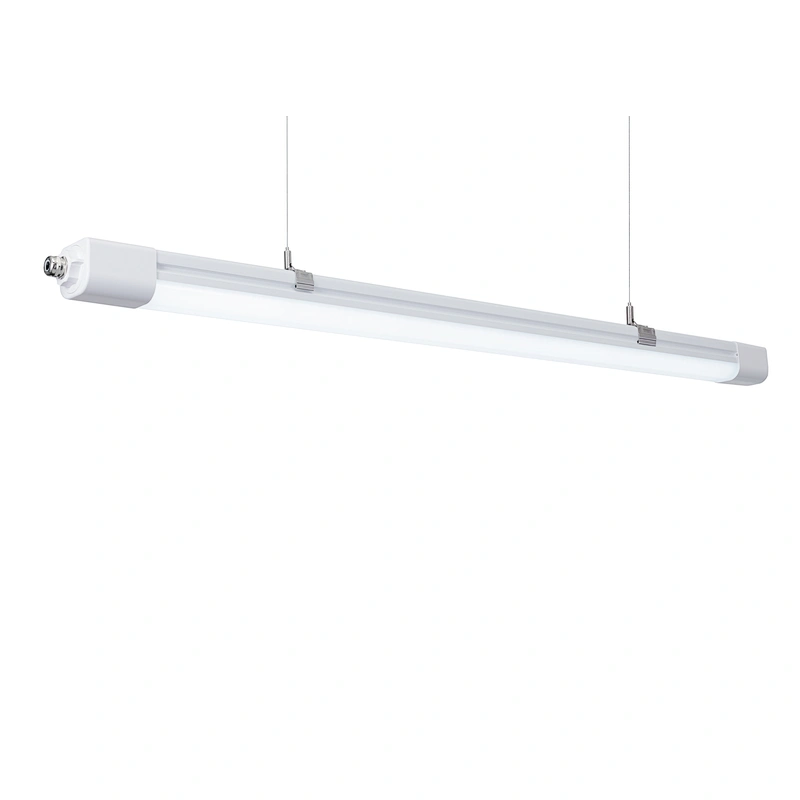

7.Suspended installation, Empended installation, Surface Celling installation for options,
Linkable and Non-Linkable can be provided.
8. Plastic models can be used in other harsh environments such as food plant,
9. Aluminum+PMMA models can be used in farms and other occasions containing ammonia.
Product Data:

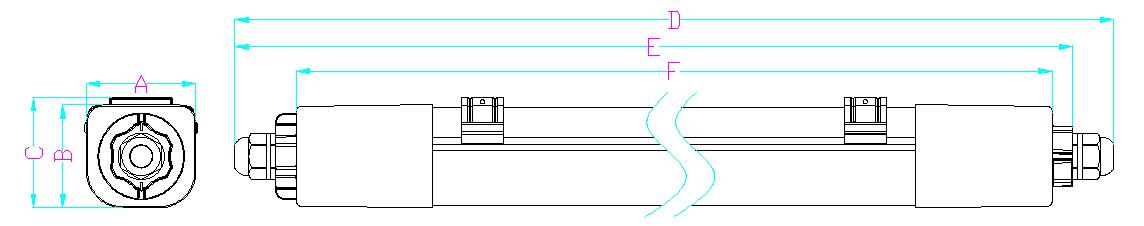

Item | A | B | C | D | E | F | Tolerance |
WS-LI06H18W-7th |
65.2
|
61.2
|
65.6
| 664 | 664 | 660 | ±3 |
WS-LI12H36W-7th | 1264 | 1244 | 1200 | ±3 | |||
WS-LI15H50W-7th | 1564 | 1544 | 1500 | ±3 |
Unite:mm
Plastic model | PMMA+Aluminum model | ||
Item | Power | Item | Power |
WS-LI06S18W-7th | 12/14/16/18W | WS-LI06B30W-7th | 17/20/25/30W |
WS-LI12S36W-7th | 20/25/30/36W | WS-LI12B50W-7th | 30/37/45/50W |
WS-LI15S56W-7th | 35/40/50/56W | WS-LI15B70W-7th | 46/52/65/70W |
Input Voltage | AC200-265V | ||
Efficacy | 130LM/W 150LM/W 170LM/W | ||
Color Temperature | 3000K 4000K 5000K 6000K | ||
Power Factor | ≥0.95 | ||
Low THD | <15%@ full load | ||
CRI | ≥80 | ||
Life Span | 50000H | ||
Operating Temperature | -20 to +45°C | ||
